HEC for Oil Drilling Industry

WOTAIchem is your trusted HEC manufacturer in China. We offer premium HEC for drilling fluids additives. Our products meet international standards. Help you better enhance drilling in challenging conditions.



HEC’s thickening, suspension, and lubrication can improve drilling fluid viscosity and stability.



WOTAIchem provides OEM solutions for your projects. And also provide deformers and sodium formate for your oil drilling project.



  • Boost drilling speed.
  • Reduce heat generated by the bit.
  • Extend equipment lifespan.
  • Leakage control of shale circulation.
  • Handle water loss issues.

WOTAIchem Hydroxyethyl Cellulose - HEC Grades

WOTAIchem hydroxyethylcellulose is a valuable ingredient for anyone working in the drilling industry. Helping to improve drilling efficiency, reduce costs, and achieve better results in challenging drilling conditions. So, we have different HEC grades for your various applications.

hec-powder
WT-HEC30000

Appearance: white or off-white

Moisture: ≤5%

Ash: ≤5%

Etherification(MS/DS): 0.8-1.2/1.8-2.0

Gel temperature: 70-85℃

PH value: 6-8

Viscosity: 25,000-35,000

hec-powder
WT-HEC50000

Appearance: white or off-white

Moisture: ≤5%

Ash: ≤5%

Etherification(MS/DS): 0.8-1.2/1.8-2.0

Gel temperature: 70-85℃

PH value: 6-8

Viscosity: 45,000-55,000

hec-powder
WT-HEC300

Appearance: white or off-white

Moisture: ≤5%

Ash: ≤5%

Etherification(MS/DS): 0.8-1.2/1.8-2.0

Gel temperature: 70-85℃

PH value: 6-8

Viscosity: 300-500

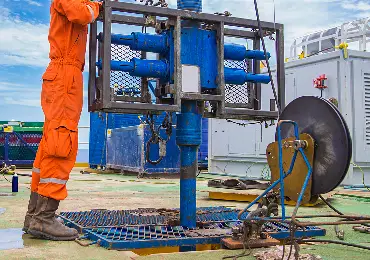

Hydroxyethyl Cellulose in Oilfield

In oil drilling, mud treatment is the key to a very important working procedure.



WOTAIchem hydroxyethylcellulose is essential for anyone in the oil drilling industry. It provides reliable thickening and suspension properties. And improves drilling efficiency and achieves better results. HEC’s key benefits include the following:



> A thickening agent for saltwater, it’s essential in many drilling operations.



> HEC maintains its viscosity even in high salt concentrations.



> HEC will not cause viscosity changes due to high salt concentrations.



hec-cellulose-oilfield

Hydroxyethyl Cellulose Related Applications

hec-paint-coating
HEC in Paints & Coatings

WOTAIchem hydroxyethylcellulose lubricant is often used in water-based paints and coatings. For example, emulsions, latex paints, and waterborne coatings. It helps to improve the consistency and flow of colour. Making it easier to apply and providing a more uniform finish.



HEC also enhances the adhesion of the paint or coating to the surface. Providing better durability and resistance to wear and tear.

hec-daily-chemicals
HEC in Daily Chemical

WOTAIchem hydroxyethyl cellulose (HEC) is a common ingredient in many daily chemical products. For example, shampoos and skincare items.



In shampoos, HEC is often used as a thickener. Helping to give the product a smooth and consistent texture. It can also provide a conditioning effect. Helping to improve hair manageability and reduce static.

drilling-site
Enhance Oil Production Efficiency

Discover free HEC samples and tailored formulations for peak efficiency in oil production.

FAQs

How to add hydroxyethyl cellulose to drilling fluid?

In many cases, it is necessary to add HEC powder to increase the viscosity of the existing drilling fluid. During this process, the material should be added slowly while stirring gently.



Ideally, the HEC powder should be moistened with an organic solvent. For example, diesel or water that is neutral to slightly acidic before addition. This preparation enhances the effectiveness of HEC.



A general-purpose drilling fluid can be prepared by following these steps:

1. Clean the mixing container (bucket, tank, etc.).
Gradually add HEC cellulose to an appropriate amount of neutral or slightly acidic water. Ensuring the rate does not exceed 100kg HEC/15 minutes according to the desired concentration.



2. Adjust the pH to 9 using sodium hydroxide. Unless the electrolyte present is calcium chloride or calcium bromide, in which case this method is not suitable.

3. The viscosity of the prepared solution can be increased by adding more HEC or decreased by adding water.

What are the additives in oil drilling?

Our recommended petroleum drilling solution involves a strategic combination of cutting-edge additives: HEC, Sodium formate, and CMC (Carboxymethyl Cellulose). This synergistic approach tackles diverse challenges in oil drilling:

  1. HEC: It acts as a versatile viscosifier and fluid loss control agent. Its rheological properties enhance drilling fluid performance, optimizing cuttings suspension and minimizing fluid loss into formations.
  2. Sodium Formate: Employed as a high-density brine, sodium formate serves as a potent weighting agent. It empowers drilling fluid to achieve optimal density. Ensuring wellbore stability and effective pressure management.
  3. CMC: It functions as a vital rheology modifier. It fine-tunes fluid viscosity for efficient cuttings transport while offering exceptional shale inhibition properties to stabilize formations and prevent wellbore complications.

By incorporating HEC, sodium formate, and CMC, our tailored solution offers a comprehensive approach to address fluid performance, wellbore stability, and cuttings management, paving the way for highly effective and secure petroleum drilling operations.

Is HEC soluble in water?

HEC is a soluble substance that can dissolve in hot and cold water. When the temperature rises, its viscosity drops. Although HEC cannot be consumed directly, it can be used in food-packaging adhesives and coatings.

What is the role of HEC in oil drilling?

Hydroxyethyl cellulose (HEC) is a widely-used component of water-based drilling fluids due to its exceptional rheological and adhesive characteristics. It offers high fluidity and excellent stability. Furthermore, HEC enables strong carrying capacity and defends reservoirs against damage. However, it loses some advantageous properties when exposed to higher temperatures.
